| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VJZ |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

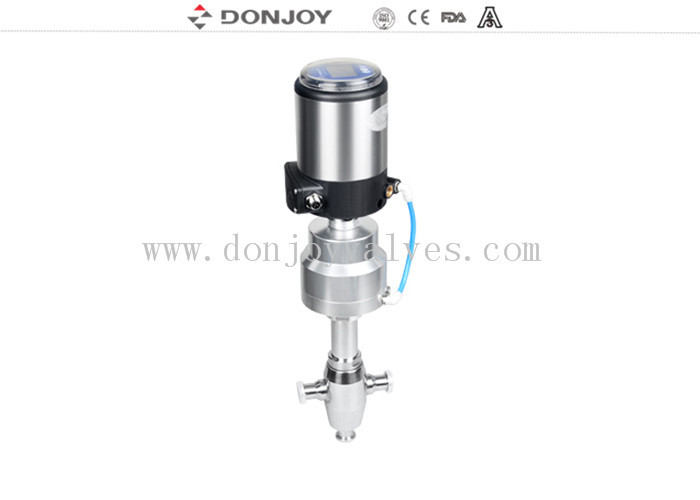

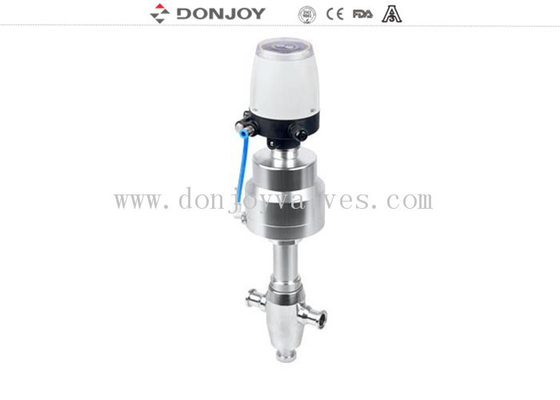

Donjoy 1/2" Clamp 3 way globe valve with valve real postion feedback(IL-TOP)
specifications:
| Product Name: | Mini globe valve |
| Valve Body Material: | CF8M/316L |
| Seal Material: | EPDM |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN15-DN65 or 0.5" - 2.5" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic ,Manual, Control Head |
| Certificate: | FDA,CE,ISO |
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Applications:
Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Drawing
Curve
Relate Products
Tag: Donjoy Globe valves , Steam Valve, Shut off valve
