| اسم العلامة التجارية: | Donjoy |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

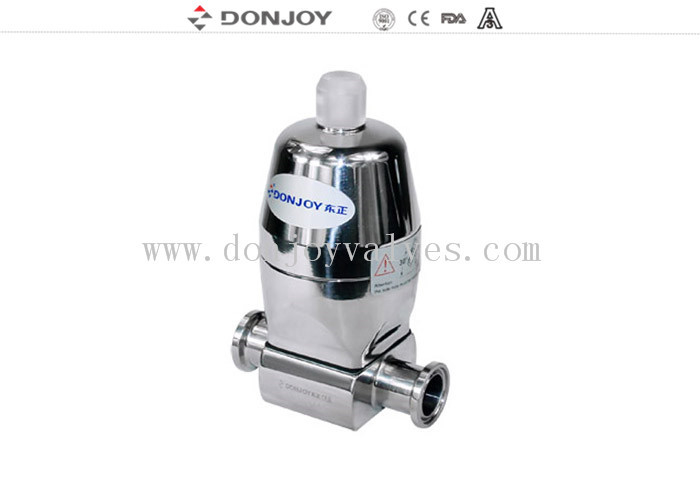

DONJOY 316L SS Direct way Clamp Sanitary Diaphragm Valve with Stainless steel actuator
Tag
Sanitary Diaphragm Valve with Stainless steel actuator
Multi-function pneumatic diaphragm valve
Double location cylinder pneumatic diaphragm valve
Specifications
|
Product Name: |
Donjoy Direct way Clamp Sanitary Diaphragm Valve with Stainless steel actuator |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket |
|
MaxWorking Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1''-4'', DN20-DN100 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
|
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
|
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Valve body: |
Forging or casting |
|
Configuration: |
Flexible with various valve seat |
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

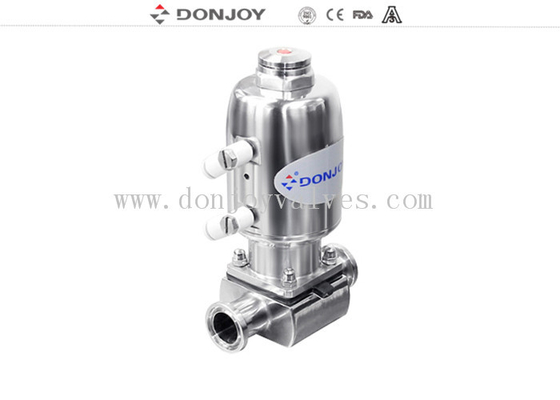

Multi-function diaphragm valve
The diaphragm valve has a double location cylinder,flow adjustable filling valve for rapid filling and prevent spillover or spatter material filling bottles
1# cylinder work flow as the largest
2# cylinder work flow to a minimum,also can through flow control device, regulating the flow of 2# cylinder at work
Technical Characteristics
Working Principle
Product drawings
