| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VKD410Q1 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

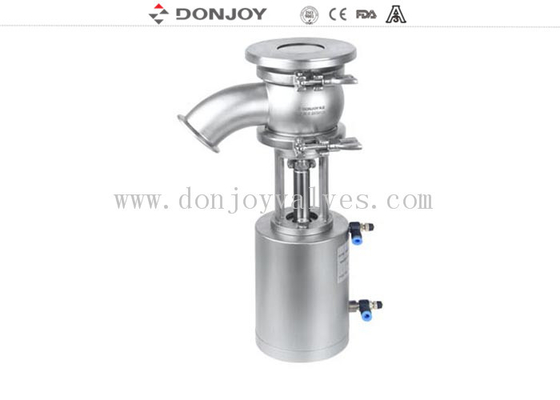

DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow
Options
1. Pneumatic
2. Steam sterilized(if shaft sterilization is required).
3. Gaskets: NBR or FPM
4. Connections: DIN, Clamp, SMS, RJT, IDF...Flange
5. Double and single acting actuator
6. Air / Spring, Air / Air
Description
|
Product Name: |
DN50 Stainless steel pneumatic tank bottom seat |
|
Valve Body Material: |
SS316L/SS304 |
|
Seal Material: |
NBR or FPM |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F |
|
Available size: |
1"-4" DN25-DN100 |
|
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
|
Operated: |
Air/Spring, Air / Air |
|
Available structure: |
Flange type, 90℃ elbow type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food processing, beverage, pharmacy, cosmetic, etc |
|
Feature: |
Suitable for good mobility medium |
|
Design: |
Dead conner minimized design |
Applications
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage, pharmaceutical and fine chemical industries.
Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforces ISO9001-2008 management system.
Target of competition
Donjoy ‘s vision is to be become a leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
Application scope:
Dairy, food, beverage, cosmetics, chemical,.etc.
Packaging details:
Bubble pack for each valve, outside packing is carton or plywood cases. Or as per the request of customer.
Delivery time:
Usually within 20days after T/T down payments.
Technical data
Tag : Tank flush valve, Stainless steel valve, Food grade Valve
