| اسم العلامة التجارية: | Donjoy |
| رقم الطراز: | NO.ZZ-K |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

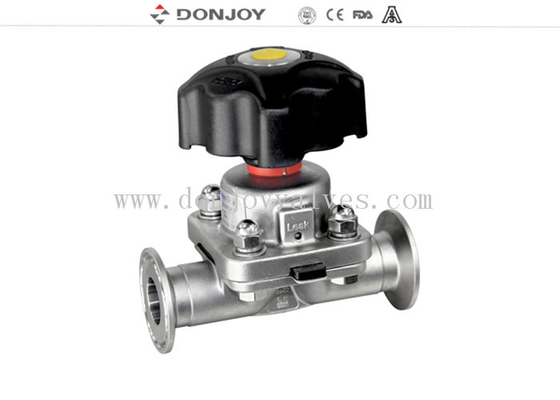

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE
Applications
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves.
It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.
Specifications
|
Product Name: |
1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
-30 to 130 degree C(plastic handwheel ) |
|
Available size: |
1”-4” , DN20-DN100 |
|
Available connection: |
Clamp / welding / thread / special connection |
|
Available standard: |
3A / BPE / DIN / ISO / IDF |
|
Operated: |
Manual,Pneumatic |
|
Available structure: |
Straight, tee, U-type, tank bottom |
|
Material of hand wheel: |
plastic and stainless steel are available |
|
Positioner: |
IL-TOP , IL-TOP-S positioner |
|
Controller: |
C-TOP controller |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
Valve Body:
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the hightemperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let thewhole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting of thestainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.
SS and Plastic Actuator
Product drawing (hand wheel)
Product drawing (pneumatic actuator)
Product display
Tag: Sanitary diaphragm valves, Donjoy sanitary valve, Phamacy valve, Controller valve
